For model 1015, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner

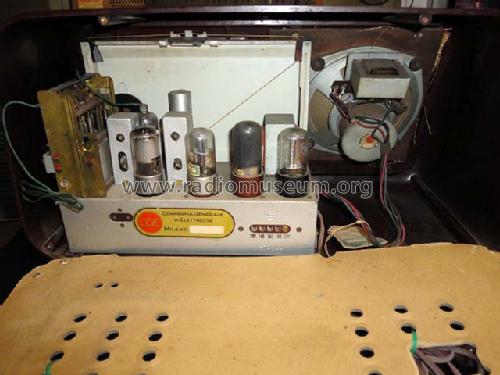

Valves / Tubes 5: 12TE8GT 12SK7GT 12SQ7GT 50L6GT 35Z4GT
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details

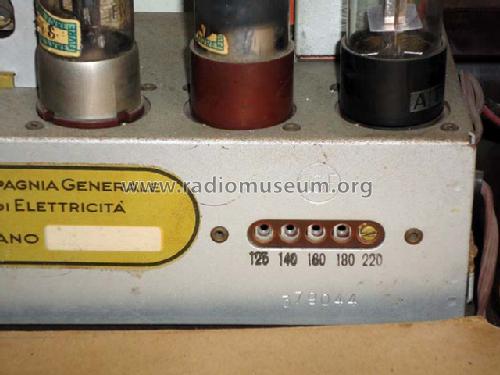

Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out
from Radiomuseum.org Model: 1015 - CGE - Compagnia Generale di
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 255 x 210 mm / 19.3 x 10 x 8.3 inch
Notes

Sintonia ad induttori variabili.

Autotrasformatore quindi telaio "caldo".



Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Mentioned in Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 21)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from CGE - Compagnia Generale di Elettricità; Milano
Here you find 300 models, 241 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
CGE - Compagnia: 1015
Threads: 1 | Posts: 1
Hits: 114     Replies: 0
cge: Posizione valvole radio cge modello 1015
Roberto Brambilla
16.Jan.21
  1

Buongiorno ,sono interessato alla posizione delle valvole inserite negli zoccoli della radio in oggetto...Perche' non trovo la schiena dove sono raffigurate...Grazie
