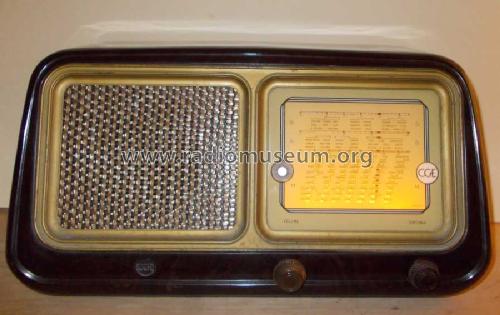

For model 1016, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12TE8GT 12SK7GT 12SQ7GT 50L6GT 6E5 35Z4GT
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 1016 - CGE - Compagnia Generale di
Material Bakelite case
Shape Tablemodel, low profile (big size).
Notes Meter
Mentioned in Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 21)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra

Model page created by Alessandro De Poi. See "Data change" for further contributors.
