- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104464

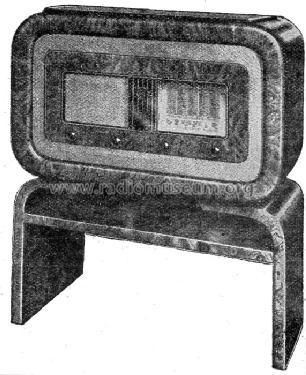

CGE 865 - pubblicità epoca
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 865 - CGE, Compagnia Generale di
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 800 x 900 x 420 mm / 31.5 x 35.4 x 16.5 inch
- Notes
- Versione radiofonografo 78 giri del mod. 365 (con sostituzione della 6F6G con la 6V6G).
- Source of data
- Guida Pratica Antique Radio III (2000)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
