• Year
  • 1964/1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 171704

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

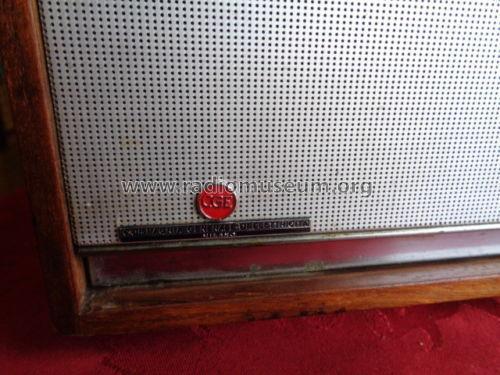

  • Model: Albatro RT244 - CGE, Compagnia Generale di
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 375 x 170 x 165 mm / 14.8 x 6.7 x 6.5 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.730 kg / 6 lb 0.2 oz (6.013 lb)
  • Price in first year of sale
  • 39,900.00 ITL
  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
