• Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74491

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 468/6750 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

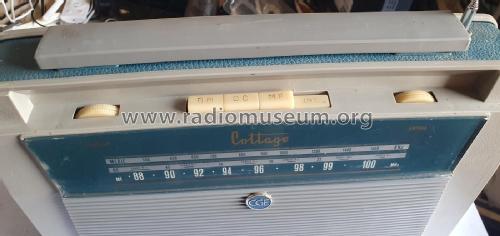

  • Model: Cottage 0619 - CGE, Compagnia Generale di
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
