• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30501

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

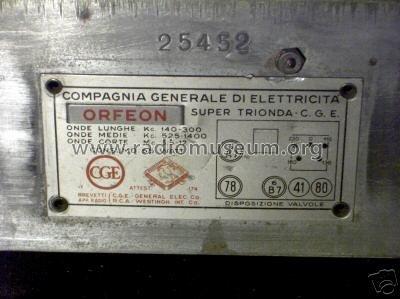

  • Model: Orfeon Super-Trionda - CGE, Compagnia Generale di
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 380 x 500 x 290 mm / 15 x 19.7 x 11.4 inch
  • Notes
  • Supertrionda

    Controllo di tono. Ingresso per giradischi.

  • Price in first year of sale
  • 1,250.00 LIT
  • Literature/Schematics (2)
  • -- Schematic (La Riparazione degli Apparecchi Radio Delforno-Colciago - Lavagnolo - Italy - 1941)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Orfeon Super-Trionda is part of the collections of the following members.
