- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191038
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

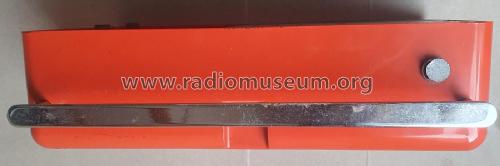

- Model: RP-220 - CGE, Compagnia Generale di
- Notes
- Gamme d'onda:
OM: 510 ÷ 1620 kHz.
FM: 87,5 ÷ 104 MHz.
- Literature/Schematics (1)

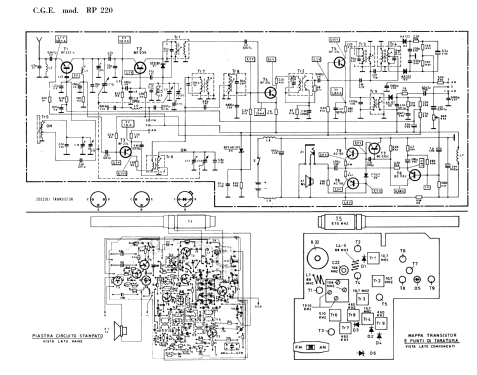

- -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 8° Antonelliana)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
