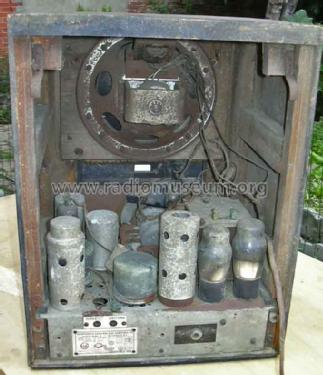

Super Mira 5 Dionda ; CGE - Compagnia (ID = 226233) Radio Super Mira 5 Dionda ; CGE - Compagnia (ID = 1117584) Radio
Super Mira 5 Dionda ; CGE - Compagnia (ID = 1117586) Radio Super Mira 5 Dionda ; CGE - Compagnia (ID = 1117587) Radio

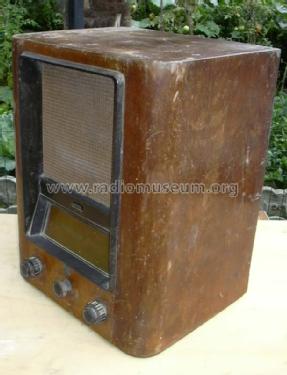

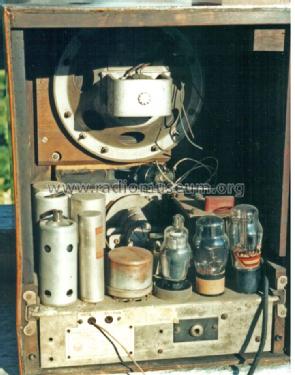

Super Mira 5 Dionda ; CGE - Compagnia (ID = 1117590) Radio Super Mira 5 Dionda ; CGE - Compagnia (ID = 1127076) Radio
Super Mira 5 Dionda ; CGE - Compagnia (ID = 1160007) Radio Super Mira 5 Dionda ; CGE - Compagnia (ID = 1160009) Radio
Use red slider bar for more.

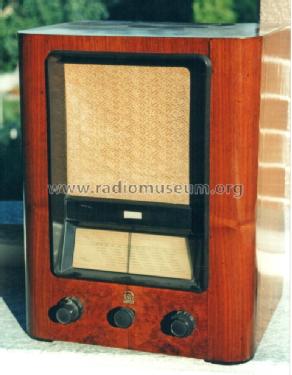

Super Mira 5 Dionda ; CGE - Compagnia (ID = 1127073) Radio
CGE - Compagnia: Super Mira 5 Dionda [Radio] ID = 1127073 773x991
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Mira 5 Dionda, CGE - Compagnia Generale di Elettricità; Milano:
Apparecchio non più in mia collezione.

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2B7 2A5 80
Main principle Superheterodyne (common); ZF/IF 175 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super Mira 5 Dionda - CGE - Compagnia Generale di
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Note musicali decorative sopra la scala parlante. Consumo 55W. Range gamme d'onda;OM:kc525-1400;OC:Mc6-13
Price in first year of sale 1'050.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in La moderna Supereterodina, Ravalico, 1938 (pag. 357)
Literature/Schematics (1) -- Original prospect or advert (L'antenna, n.1, gennaio 1935)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
