• Country
• Italy

• Manufacturer / Brand
• CGE, Compagnia Generale di Elettricità; Milano

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98961

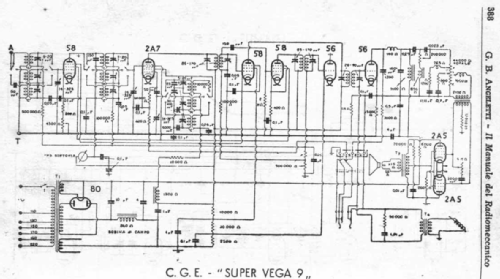

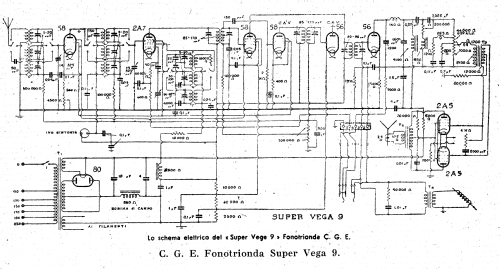

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 58 2A7 58 58 56 56 2A5 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 190; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Vega 9 Fonotrionda - CGE, Compagnia Generale di

• Shape
• Console, Lowboy (legs < 50 %).

• Price in first year of sale
• 4,150.00 LIT

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic
