Supergioiello 195

Supergioiello 195; CGE - Compagnia (ID = 106683) Radio
Supergioiello 195; CGE - Compagnia (ID = 2430859) Radio Supergioiello 195; CGE - Compagnia (ID = 2430860) Radio
Supergioiello 195; CGE - Compagnia (ID = 123239) Radio Supergioiello 195; CGE - Compagnia (ID = 249134) Radio
Supergioiello 195; CGE - Compagnia (ID = 249133) Radio Supergioiello 195; CGE - Compagnia (ID = 327972) Radio
Supergioiello 195; CGE - Compagnia (ID = 327973) Radio Supergioiello 195; CGE - Compagnia (ID = 655452) Radio
Supergioiello 195; CGE - Compagnia (ID = 655453) Radio Supergioiello 195; CGE - Compagnia (ID = 699563) Radio
Use red slider bar for more.
Supergioiello 195; CGE - Compagnia (ID = 2430859) Radio
CGE - Compagnia: Supergioiello 195 [Radio] ID = 2430859 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Supergioiello 195, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt

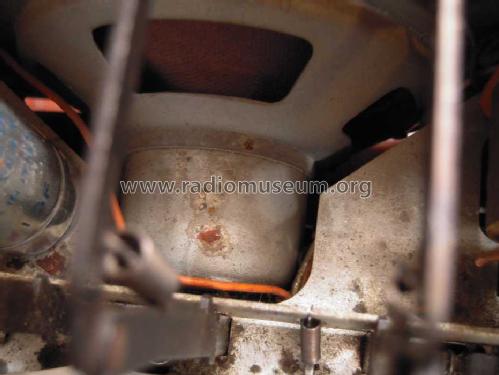

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Supergioiello 195 - CGE - Compagnia Generale di
Material Wooden case

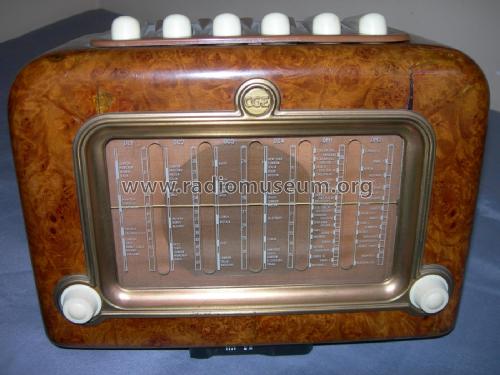

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 260 x 185 x 140 mm / 10.2 x 7.3 x 5.5 inch
Notes

2 gamme OM, 4 OC.

sola la prima serie mod48 priva del trasf.di alimentazione funzionava in cc e in ca

A richiesta borsa di pelle in diversi colori: L 5000.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 39'500.00 LIT
Collectors' prices
Source of data Guida Pratica Antique Radio IV (2001)
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 41)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra
Literature/Schematics (2) -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.
