Piccolo
Champion Radio AB; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Champion Radio AB; Stockholm
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 235973

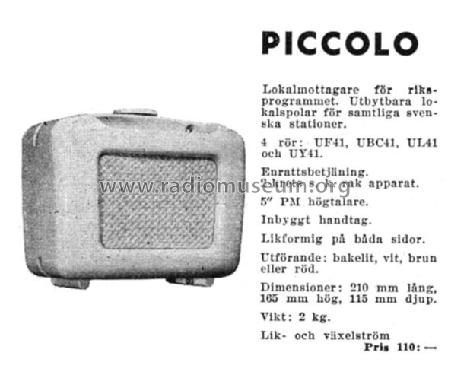

Product flyer 1951
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Piccolo - Champion Radio AB; Stockholm
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 210 x 115 x 165 mm / 8.3 x 4.5 x 6.5 inch
- Notes
-
Local receiver for the Swedish national broadcast. Interchangeable coils for all Swedish stations. Built-in handle.
Symmetrical cabinet (back looks the same as front). Available in bakelite, white, brown or red.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Price in first year of sale
- 110.00 SKR
- Mentioned in
- -- Original prospect or advert
