• Country
• Italy

• Manufacturer / Brand
• Chinaglia Dino Elettrocostruzioni; Belluno

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 199314

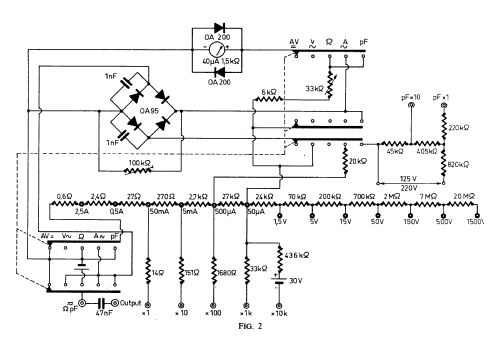

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Vielfachmessgerät AN-660-B - Chinaglia Dino

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 95 x 150 x 50 mm / 3.7 x 5.9 x 2 inch

• Notes
• Universal-Multimeter für AC/DC, Widerstände und Kapazitäten. Messbereiche: AC/DC 0-1500 V; 0-2,5 A. Widerstand: 0- 100 MOhm. Kapazität: 100 pF - 0,25 µF (mit Netzspannung) bis 1000 µF durch ballistische Methode; Gerät wird mit Ledertasche geliefert.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Author
• Model page created by Wolfgang Feige. See "Data change" for further contributors.
