2 way stereo crossover unit FA 570 7204
CIARE; Senigallia (AN)
- Country
- Italy
- Manufacturer / Brand
- CIARE; Senigallia (AN)
- Year
- 1990 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 296739
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

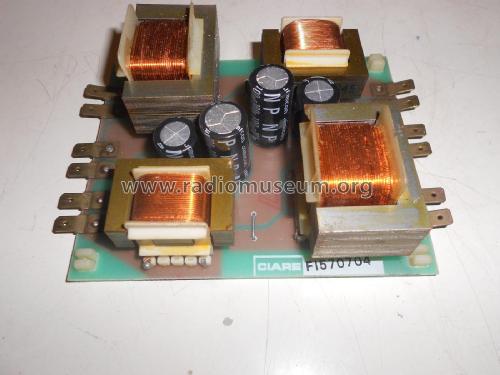

- Model: 2 way stereo crossover unit FA 570 7204 - CIARE; Senigallia AN
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 148 x 60 x 135 mm / 5.8 x 2.4 x 5.3 inch
- Notes
-
power 100 + 110 watt - impedance 4 Ω - 2 way: SW/MH - cross-frequency: 150 Hz - attenuation 6/12 db/oct.
- Net weight (2.2 lb = 1 kg)
- 1.350 kg / 2 lb 15.6 oz (2.974 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
- Other Models
-
Here you find 4 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from CIARE; Senigallia (AN)
Collections
The model 2 way stereo crossover unit is part of the collections of the following members.
