• Country
• France

• Manufacturer / Brand
• Cibot Radio; Paris

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 260670

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 or 6AF7 GZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Combiné Radio-Phono Ideal 512 - Cibot Radio; Paris

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 500 x 300 x 270 mm / 19.7 x 11.8 x 10.6 inch

• Notes

• l'Indicateur d'accord est soit une EM4 soit une 6AF7 suivant disponibilité.

  Le cadran est carré 145x145 mm.

  Ébénisterie: Ronce de noyer, verni au tampon.

  Choix de la platine tourne-disque, soit :
  - Braun
  - origine Anglaise de marque non indiquée
  - origine Belge de marque non indiquée.


• Mentioned in
• Le Haut-Parleur

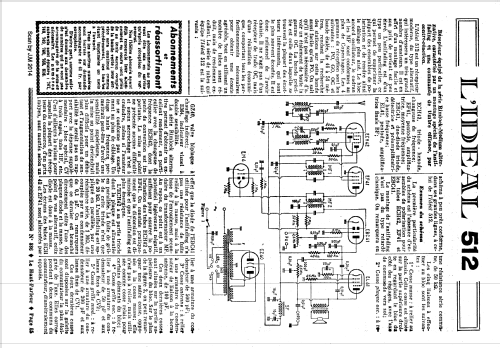

• Literature/Schematics (1)
• Le Haut-Parleur

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
