Coaxial 2-way Speaker System GS-509E Mark II

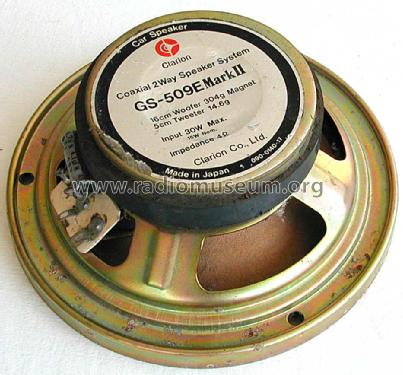

Coaxial 2-way Speaker System GS-509E Mark II; Clarion Co., Ltd.; (ID = 1507459) Speaker-P Coaxial 2-way Speaker System GS-509E Mark II; Clarion Co., Ltd.; (ID = 1507461) Speaker-P
Coaxial 2-way Speaker System GS-509E Mark II; Clarion Co., Ltd.; (ID = 1507463) Speaker-P Coaxial 2-way Speaker System GS-509E Mark II; Clarion Co., Ltd.; (ID = 1507465) Speaker-P
Use red slider bar for more.
Coaxial 2-way Speaker System GS-509E Mark II; Clarion Co., Ltd.; (ID = 1507459) Speaker-P
Clarion Co., Ltd.;: Coaxial 2-way Speaker System GS-509E Mark II [Speaker-P] ID = 1507459 933x795
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coaxial 2-way Speaker System GS-509E Mark II, Clarion Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Clarion Co., Ltd.; Tokyo
Year: 1987 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Coaxial 2-way Speaker System GS-509E Mark II - Clarion Co., Ltd.; Tokyo
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 165 x 165 x 70 mm / 6.5 x 6.5 x 2.8 inch
Notes

16 cm Woofer, 5 cm Tweeter. Input: max. 30 W, nom. 15 W.
Impedance: 4 Ω.

Net weight (2.2 lb = 1 kg) 1.150 kg / 2 lb 8.5 oz (2.533 lb)

Model page created by a member from D. See "Data change" for further contributors.
