Compo Car Stereo GT-501

Compo Car Stereo GT-501; Clarion Co., Ltd.; (ID = 467065) Car Radio Compo Car Stereo GT-501; Clarion Co., Ltd.; (ID = 467066) Car Radio
Compo Car Stereo GT-501; Clarion Co., Ltd.; (ID = 467067) Car Radio Compo Car Stereo GT-501; Clarion Co., Ltd.; (ID = 467068) Car Radio
Use red slider bar for more.

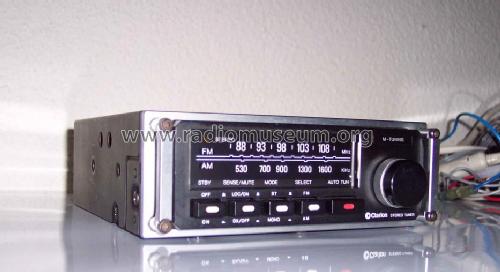

Compo Car Stereo GT-501; Clarion Co., Ltd.; (ID = 467065) Car Radio
Clarion Co., Ltd.;: Compo Car Stereo GT-501 [Car Radio] ID = 467065 933x552
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compo Car Stereo GT-501, Clarion Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Clarion Co., Ltd.; Tokyo
Year: 1968 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 452,5/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Compo Car Stereo GT-501 - Clarion Co., Ltd.; Tokyo
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 140 x 52 x 158 mm / 5.5 x 2 x 6.2 inch
Notes Clarion Compo Car Stereo Tuner - FM:88-108 MHz, AM: 530-1605 KHz, CZ1 Noise Suppression for FM, Auto Tuning "Press button motor selector tuning".
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Source of data - - Data from my own collection

Model page created by J. Virgilio Santos. See "Data change" for further contributors.



All listed radios etc. from Clarion Co., Ltd.; Tokyo
Here you find 90 models, 73 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
