• Country
• Spain

• Manufacturer / Brand
• Clarión; Barcelona

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118983

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org

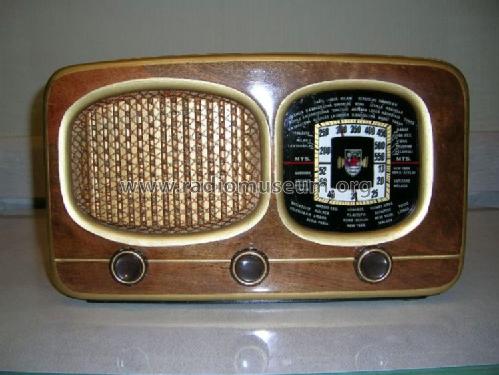

• Model: RA-3-H - Clarión; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 210 x 200 mm / 14.2 x 8.3 x 7.9 inch

• Notes

• La serie H fue la última fabricada antes del cierre en 1956.

• Source of data
• - - Data from my own collection

• Author
• Model page created by José Maria Santos-Sanchez. See "Data change" for further contributors.
