RP-1007H

RP-1007H; Clarion Co., Ltd.; (ID = 1916348) Car Radio RP-1007H; Clarion Co., Ltd.; (ID = 1916349) Car Radio
RP-1007H; Clarion Co., Ltd.; (ID = 1916352) Car Radio RP-1007H; Clarion Co., Ltd.; (ID = 1916353) Car Radio
RP-1007H; Clarion Co., Ltd.; (ID = 1916354) Car Radio RP-1007H; Clarion Co., Ltd.; (ID = 1916355) Car Radio
RP-1007H; Clarion Co., Ltd.; (ID = 1916357) Car Radio RP-1007H; Clarion Co., Ltd.; (ID = 1916358) Car Radio
Use red slider bar for more.

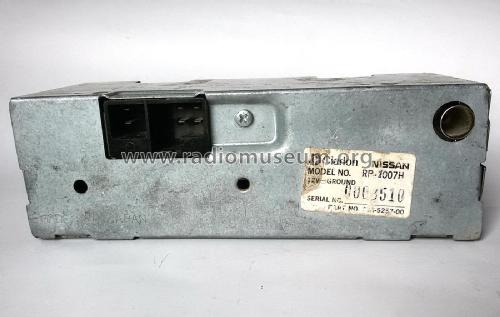

RP-1007H; Clarion Co., Ltd.; (ID = 1916348) Car Radio
Clarion Co., Ltd.;: RP-1007H [Car Radio] ID = 1916348 1400x903
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP-1007H, Clarion Co., Ltd.; Tokyo:
Front panel missing.

Country:  Japan
Manufacturer / Brand:  Clarion Co., Ltd.; Tokyo
Year: 1984 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) µPC1216 µPC1241
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RP-1007H - Clarion Co., Ltd.; Tokyo
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 165 x 53 x 85 mm / 6.5 x 2.1 x 3.3 inch
Notes

Clarion radio for Nissan car

Made in Japan

Model page created by Daniel Rosha. See "Data change" for further contributors.
