• Country
• Spain

• Manufacturer / Brand
• Clarivox, S.A., Electrónica; Zaragoza

• Year
• 1984

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 311252

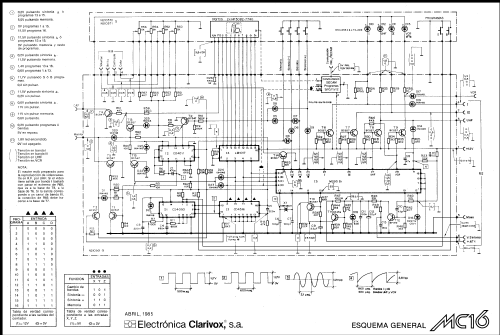

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BC547 BC557 BF199 BF459 CD4011 CD4093 CD4516 LM1017 M293B1 5082-7740 1N4148 TIL209 ZTK33 BZX79

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit. / 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Módulo de Sintonía para TV Master MC16 - Clarivox, S.A., Electrónica;

• Shape
• Miscellaneous shapes - described under notes.

• Notes

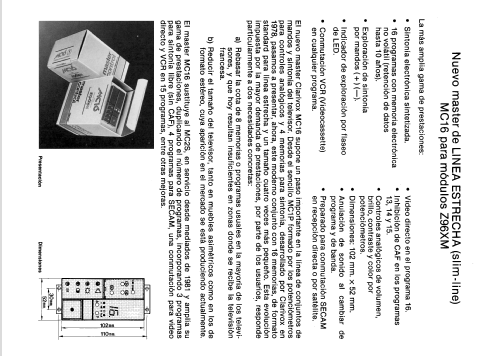

• El Máster MC16 de Clarivox es un módulo de sintonía de 16 canales sin posibilidad de telemando.

  Especialmente fabricado para la salida al mercado de los televisores Clarivox Z96XM, aunque podría usarse en modelos anteriores con sintonizador electrónico. Clarivox lo define como un sustituto del modelo MC2S.

  Listado un único semiconductor por tipo.

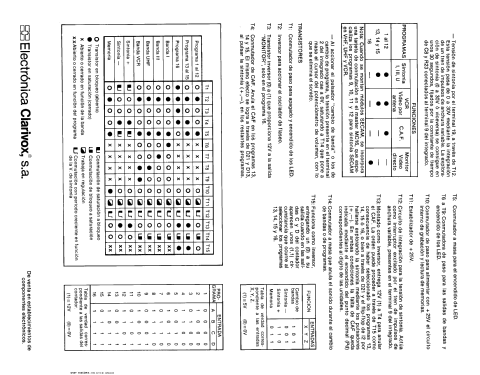

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
