- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230685
F_CLARVILLE_Don Juan

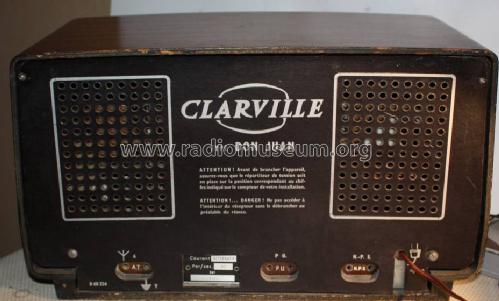

F_CLARVILLE_Don Juan_rear panel
F_CLARVILLE_Don Juan_inside view
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Don Juan - Clarville CSF; Paris,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 410 x 230 x 200 mm / 16.1 x 9.1 x 7.9 inch
- Notes
-
GO-LW: 150 - 305 kHz,
PO-MW: 520 - 1610 kHz,
OC: 6 - 18,6 MHz,
BE-Bande etalee: 5.88 - 6.35 MHz,Variante du modele DON JUAN RS318 chassis identique mais boîtier en bois
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Author
- Model page created by Georges Werts. See "Data change" for further contributors.
- Other Models
-
Here you find 208 models, 180 with images and 58 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Clarville (CSF); Paris, Levallois-Perret
