E500

E500; Clarville CSF; Paris (ID = 221151) Radio

E500; Clarville CSF; Paris (ID = 553731) Radio
E500; Clarville CSF; Paris (ID = 468573) Radio E500; Clarville CSF; Paris (ID = 468579) Radio
E500; Clarville CSF; Paris (ID = 468578) Radio E500; Clarville CSF; Paris (ID = 221367) Radio
E500; Clarville CSF; Paris (ID = 468575) Radio E500; Clarville CSF; Paris (ID = 468576) Radio
E500; Clarville CSF; Paris (ID = 468577) Radio E500; Clarville CSF; Paris (ID = 468580) Radio
E500; Clarville CSF; Paris (ID = 468582) Radio
Use red slider bar for more.
E500; Clarville CSF; Paris (ID = 468573) Radio
Clarville CSF; Paris: E500 [Radio] ID = 468573 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model E500, Clarville (CSF); Paris, Levallois-Perret

Country:  France
Manufacturer / Brand:  Clarville (CSF); Paris, Levallois-Perret
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH41 EAF41 EL41 GZ40 6AF7
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

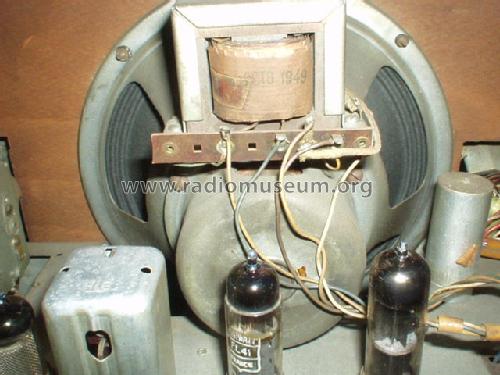

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: E500 - Clarville CSF; Paris,

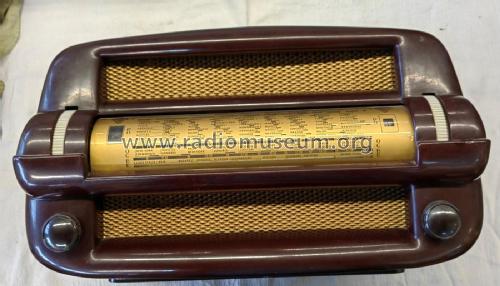

Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 495 x 275 x 265 mm / 19.5 x 10.8 x 10.4 inch
Notes There is one more variation. With tubes ECH42, EAF42, EL41, GZ40, 6AF7 and with white wheels for tuning and level.
External source of data Serge Laffont/Martin Renoth


All listed radios etc. from Clarville (CSF); Paris, Levallois-Perret
Here you find 204 models, 176 with images and 58 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
