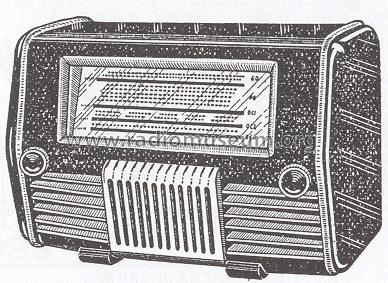

For model M111, Clarville (CSF); Paris, Levallois-Perret:
By courtesy of guest Jan Van Rompaey, 2800 Mechelen, Belgium (enlarged).

Country:  France
Manufacturer / Brand:  Clarville (CSF); Paris, Levallois-Perret
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH41 EAF41 EAF41 EL41 EM4 GZ40
Main principle Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: M111 - Clarville CSF; Paris,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 330 x 250 mm / 21.3 x 13 x 9.8 inch
Notes

6 gammes d'ondes dont 3 bandes OC étalées "band spread" :

  • GO de 1000 à 2000 m
  • PO de 180 à 575 m
  • OC de 16 à 47.5 m
  • OC1 de 18.9 à 20.8 m
  • OC2 de 24.6 à 26.4 m
  • OC3 de 47.5 à 50.8 m

Contrôle de tonalité à variation continue des graves aux aigues combiné avec système de contre-réaction. Prises antenne-terre, pick-up et HP supplémentaire. Coffret en métal peint décor bois.

Supplément pour 25 périodes: 900 Fr.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 23'900.00 FRF
External source of data Serge Laffont/Martin Renoth
Mentioned in - - Manufacturers Literature (Tarif du 15.06.1950)

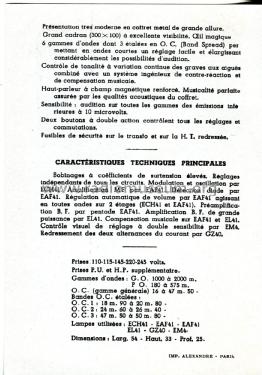

Literature/Schematics (1) -- Original prospect or advert
Literature/Schematics (2) Schémathèque Sorokine (SRK) (No. 609)


All listed radios etc. from Clarville (CSF); Paris, Levallois-Perret
Here you find 204 models, 176 with images and 58 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
