• Country
• United States of America (USA)

• Manufacturer / Brand
• Climax Radio & Television Co, Inc.; Chicago, IL

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 35414

• • alternative name: Amplitron

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6D6 6C6 43 25Z5 L55B

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

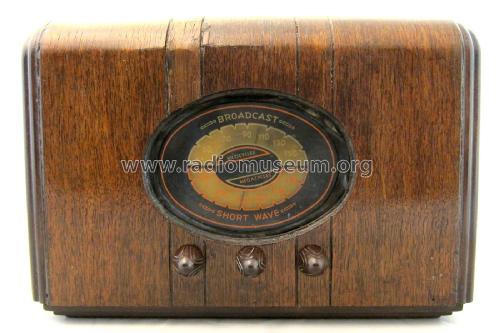

• Model: Z-55 - Climax Radio & Television Co,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 7 x 6 inch / 279 x 178 x 152 mm

• Notes
• Ballast tube "L55B".

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Other Models

• Here you find 133 models, 22 with images and 122 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Climax Radio & Television Co, Inc.; Chicago, IL
