68B131M

68B131M ; Coast to Coast (ID = 2414380) Radio 68B131M ; Coast to Coast (ID = 2414383) Radio
68B131M ; Coast to Coast (ID = 2414381) Radio 68B131M ; Coast to Coast (ID = 2414382) Radio
68B131M ; Coast to Coast (ID = 2414384) Radio 68B131M ; Coast to Coast (ID = 2415378) Radio
68B131M ; Coast to Coast (ID = 2415379) Radio 68B131M ; Coast to Coast (ID = 2415380) Radio
68B131M ; Coast to Coast (ID = 2415381) Radio 68B131M ; Coast to Coast (ID = 2415382) Radio
Use red slider bar for more.
68B131M ; Coast to Coast (ID = 2414380) Radio
Coast to Coast: 68B131M [Radio] ID = 2414380 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 68B131M, Coast to Coast Stores:

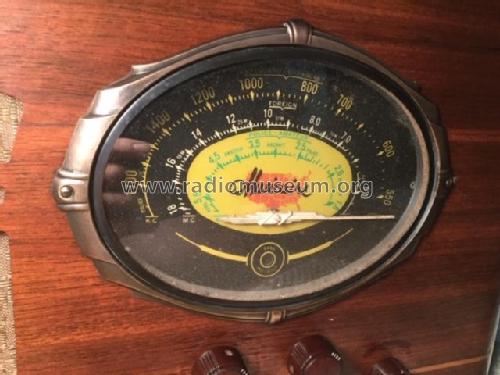

Picture from James Collins.

Country:  United States of America (USA)
Manufacturer / Brand:  Coast to Coast Stores
Brand

Musicaire
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 15 76 15 76 19
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Storage and/or dry batteries / 6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 68B131M - Coast to Coast Stores
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 19.5 x 11 x 8 inch / 495 x 279 x 203 mm
Notes

Similar in style to the Musicaire 52A134.

Chassis probably is similar to Allied, Sentinel, or Spiegel chassis 68B.

Net weight (2.2 lb = 1 kg) 21.5 lb (21 lb 8 oz) / 9.761 kg

Model page created by David Erali. See "Data change" for further contributors.
