6924 Mk2

Codan Pty. Ltd.; Adelaide

Data
Forum
Pictures
Collections

  • Year
  • 1969 ?
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 321800

 Technical Specifications

  • Main principle
  • ZF/IF 1650 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Direct Current supply (DC) / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 6924 Mk2 - Codan Pty. Ltd.; Adelaide
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 12 x 4.75 x 8.5 inch / 305 x 121 x 216 mm
  • Notes

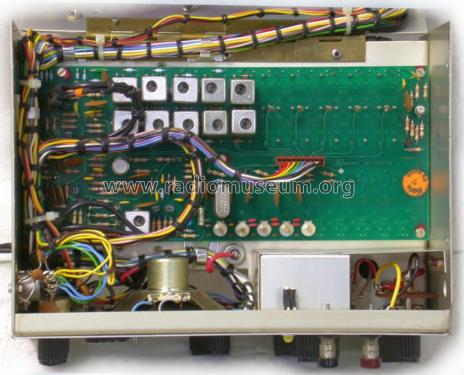

  • The 6924 Mk 2 is a small portable unit in a rainproof "lunch box" with clip-on lid and built-in antenna tuner. A small compartment on the left side gives storage space for the microphone. The antenna and ground push-terminal connections are on the front panel. Colours are green and cream (6924 Mk 2) or blue and grey (6924-S Mk 2). The units are engineering masterpieces and easy to work on. An ideal radio for solar power supply (note receiver current). The 6924 Mk 2 has been used in many out of the way places -off-shore islands, Antarctica, and throughout the Pacific.

    6924 Mk 2 Specifications

    • Frequency Range: 2 - 13MHZ, 10 crystals 10 channel, single or two frequency simplex
    • Modes: SSB (A3J), USB with LSB option AM (A3H), automatic AM on 2182kHz with option Any two of USB, LSB, AM modes possible
    • Power Supply: 12V, 10.5 - 15V (case isolated) Receive, 100mA A3) average voice transmit 2A A3H, A3) two tone transmit 3.5A
    • Transmitter Output Power: 30W PEP (6924-S 35W) 8W AM (6924-S 9w)
    • Antenna: Whip or long-wire from 2.4m to 25m at any frequency within operating range
    • Dimensions: 313 x 193 x 125mm, 4.7kg
  • Net weight (2.2 lb = 1 kg)
  • 11.5 lb (11 lb 8 oz) / 5.221 kg
  • Author
  • Model page created by Noel Sutherland. See "Data change" for further contributors.
