• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332023

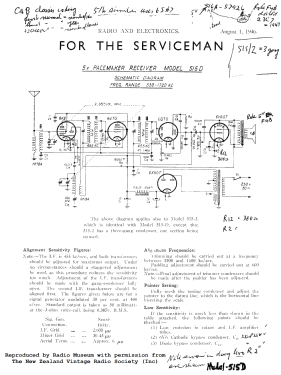

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6U7G 6Q7G 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Pacemaker 515-2 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 360 x 220 x 190 mm / 14.2 x 8.7 x 7.5 inch

• Notes

• See also Pacemaker 515D, 516 & 516A which share the same/similar circuit.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
