- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1957 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 135688
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

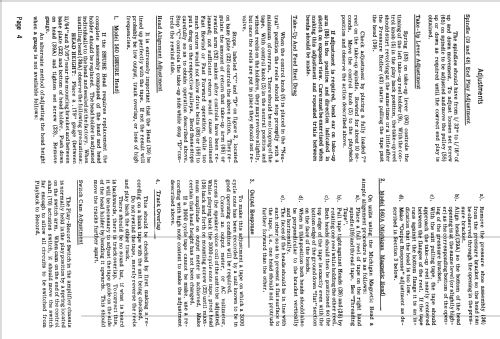

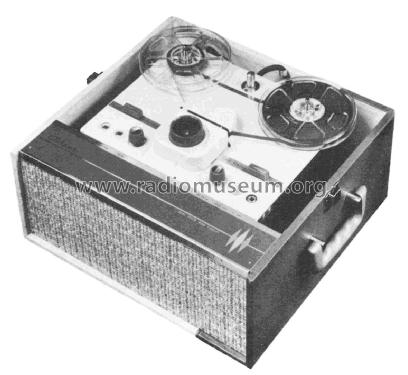

Picture from service manual.
Sams photofact set 363 folder 6 date 7-57.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 560A - CBS-Columbia Inc.; New York,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
SAMS Photofact, date 7-57, set 363, folder 6 features the Columbia models 560 and 560A as the same schematic. 560 uses a single unit record-erase head. 560A uses a two unit record- erase head. The recorders has 2 speeds: 3 3/4" and 7 1/2" per second.Speakers are 5".
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS ((Set 363 folder 6 date 7-57 title))
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
