- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106593
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 600G - CBS-Columbia Inc.; New York,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

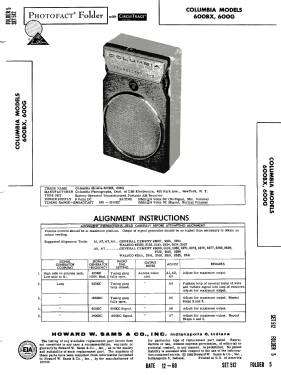

SAMS Photofact, date 12-60, set 512, folder 5 features the Columbia models 600BX (black) and 600G (green) as the same schematic. The difference is only the color.
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 512 Folder 5 12-1960)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
