Viva-tonal Grafonola 201

Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816770) TalkingM Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816768) TalkingM
Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816775) TalkingM Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816776) TalkingM
Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816777) TalkingM Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816780) TalkingM
Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816781) TalkingM Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816782) TalkingM

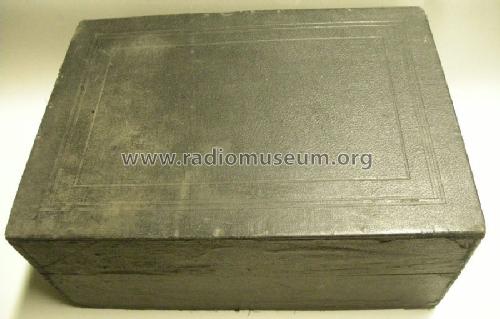

Viva-tonal Grafonola 201; Columbia Graphophone (ID = 1368391) TalkingM Viva-tonal Grafonola 201; Columbia Graphophone (ID = 1368392) TalkingM
Use red slider bar for more.
Viva-tonal Grafonola 201; Columbia Graphophone (ID = 816770) TalkingM
Columbia Graphophone: Viva-tonal Grafonola 201 [TalkingM] ID = 816770 621x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viva-tonal Grafonola 201, Columbia Graphophone Co.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Columbia Graphophone Co.; London
Year: 1930 ?? Category: Talking machine - Mechanical Gramophone/Phonograph
Wave bands - without
Details Record Player (not changer)
Power type and voltage Solar- and/or muscle driven, also addl. power jack possible
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Viva-tonal Grafonola 201 - Columbia Graphophone Co.;
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 168 x 410 mm / 11.2 x 6.6 x 16.1 inch
Notes Der Grammophon-Koffer ist bestückt mit der Schalldose "Columbia Brit.Pat.Nos 268257-264263" sowie dem Federwerk "Patents applied for No 20 ~ Made in England Ref No 231". Der Tonarm ist kugelgelagert am Horn befestigt und die Schalldose lässt sich zum besseren Wechsel der Nadel umklappen. Nach diesem Prinzip verringerte sich das Auflagegewicht der Nadel, da das Gewicht des Tonarms nicht mit auf der Platte aufliegt.
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Source of data - - Data from my own collection

Model page created by Guido Höh. See "Data change" for further contributors.
