• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Columbus (Brand); Radio Centre Ltd.; Wellington

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337195

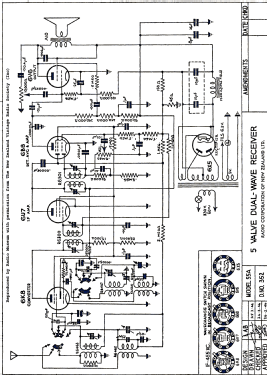

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6U7 6B8 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

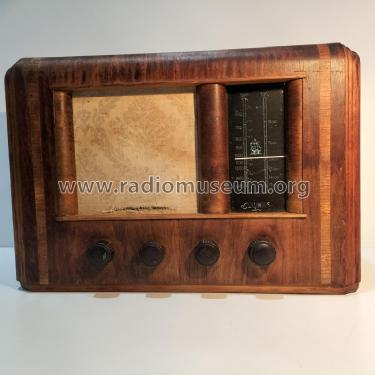

• Model: Corvette 55A - Columbus Brand; Radio Centre

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 462 x 320 x 230 mm / 18.2 x 12.6 x 9.1 inch

• Notes

• 5 valve dual wave superhet.

  Same chassis used in the Courtenay 55A.

  More variants include the 55, 55R, and 55S which appear to use different tuning capacitors and slightly different dial layouts.  The 55R is also noted in service literature as having different tone control circuitry.  The 55S appears to have newer and more compact coils.

• Price in first year of sale
• 29.50 NZ Pounds

• Mentioned in
• -- Original prospect or advert (Nothern Advocate 27 May 1946 Page 3)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
