• Country
• Spain

• Manufacturer / Brand
• Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona

• Year
• 1949

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 238159

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 & 2 x 4,5 & 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

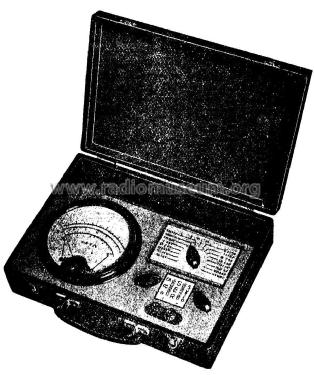

• Model: Comprobador 1256 - Comercial Radio Bertrán;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 85 x 220 mm / 11.8 x 3.3 x 8.7 inch

• Notes
• • 0 a 1000 Vcc ó Vca en 5 escalas (10, 50, 250, 500 y 1000 V fondo escala).
  • 0 a 250 mA en 4 escalas (1, 10, 100 y 250 mA fondo escala).
  • 0,005 a 0,5 mF en 1 escala usando entrada de 125V~ para la medición.
  • Precio en forma de KIT = 748,20 pesetas.
  • Totalmente montado = 900 pesetas (1€ = 166,86 pesetas)

• Price in first year of sale
• 900.00 ESP

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
