S-7059 Dial Losalse 1033
Comercial Radio Bertrán / Electrónica Bertrán / ELBE; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Comercial Radio Bertrán / Electrónica Bertrán / ELBE; Barcelona
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 363022

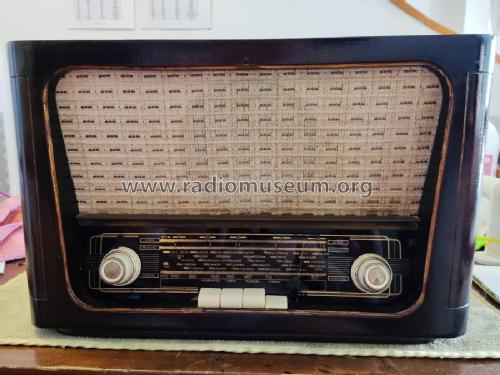

Front, restored

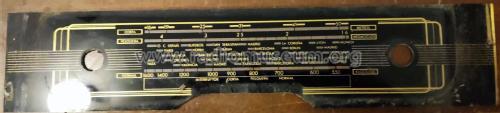

Replacment cover, restored

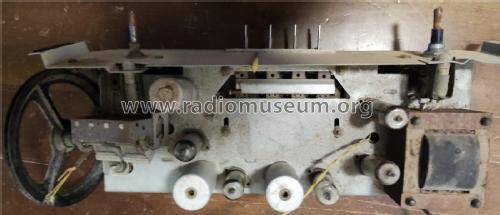

Restored, top and front
todocoleccion.net_x286344483
todocoleccion.net_x286344483
todocoleccion.net_x286344483
todocoleccion.net_x286344483
todocoleccion.net_x286344483
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 165 cm = 65 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S-7059 Dial Losalse 1033 - Comercial Radio Bertrán /
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 440 x 185 x 285 mm / 17.3 x 7.3 x 11.2 inch
- Notes
-
Entrada para fonógrafo en la parte trasera.
Los teclas son, Apagado, Onda corta, Pesquera, Normal
- Price in first year of sale
- 1,200.00 pts
- Author
- Model page created by Lincoln Garfirth. See "Data change" for further contributors.
