- Country
- Spain
- Manufacturer / Brand
- Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona
- Year
- 1978 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 312799
Portada del manual de usuario
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 420AGB22
- Number of Transistors
- 31
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: ELBE 1660-16" - Comercial Radio Bertrán;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 430 x 400 x 350 mm / 16.9 x 15.7 x 13.8 inch
- Notes
-
ELBE 1660-16" TV Color PAL 16" con sintonizador a varicaps para VHF/UHF y 8 canales programables.
31 Transistores, 11 C.I., 63 diodos, 5 tiristores.
- Mentioned in
- - - Manufacturers Literature
- Literature/Schematics (1)

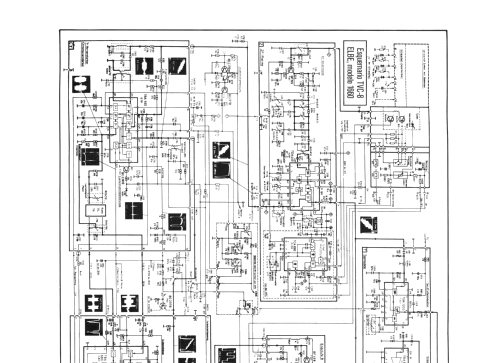

- -- Schematic (Esquemario TV Color REDE, TVC VIII)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
