- Country
- Spain
- Manufacturer / Brand
- Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216783
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
- Material
- Bakelite case
- from Radiomuseum.org

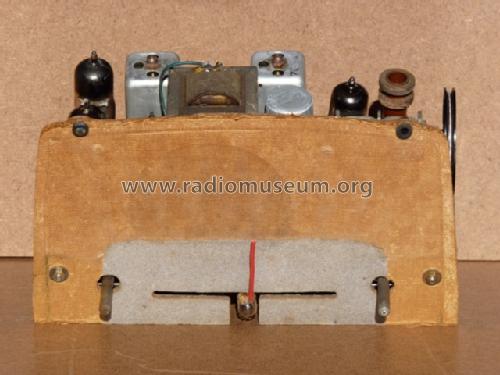

- Model: Kit 202 - Comercial Radio Bertrán;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 230 x 150 x 120 mm / 9.1 x 5.9 x 4.7 inch
- Notes
-
La caja de este Kit es el modelo L-69 de Lacora que fue utilizado para Kits de diversas marcas.
- Price in first year of sale
- 1,010.00 ESP
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Ildefonso Angel López. See "Data change" for further contributors.
