• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 245971
    • alternative name: Cía Gramófono

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

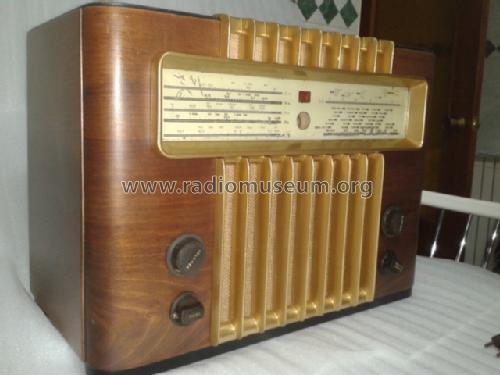

  • Model: La Voz de su Amo R-510 - Compañía del Gramófono Odeón
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 490 x 350 x 280 mm / 19.3 x 13.8 x 11 inch
  • Notes

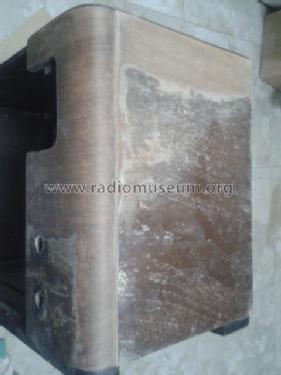

  • Madera, con rejillas en baquelita.
    OC: 51 ... 30 m; bandas 13m, 16 m, 19 m, 25 m y 31 m.

    Ver también Marconi M-49 que comparte el mismo esquema.

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
