For model T18A, Ténor, Compagnie Commerciale de Radio-Électricité (CCR, C.C.R.); Paris:
Original-Prospect Ténor ~1939 (La Serie Normale)

Country:  France
Manufacturer / Brand:  Ténor, Compagnie Commerciale de Radio-Électricité (CCR, C.C.R.); Paris
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EK2 EF9 EB4 EBC3 EM1 EL3N EL3N AZ1
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: T18A - Ténor, Compagnie Commerciale
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 630 x 370 x 280 mm / 24.8 x 14.6 x 11 inch
Notes

Ténor T.18.A;
Pick-up in, tone & bandwidth control, tuning indicator tube, ext. speaker terminal.

Remark: this model was initially created with data found on ebay; tube EF9 is pin compatible with EF5; tubes EL3 and EL3N also; which leads to the conclusion that this model is still an 18A model as described in the generic 18A model schematic by Philips in 1937.

Mentioned in -- Original prospect or advert (Ténor ~1939 (La Serie Normale))

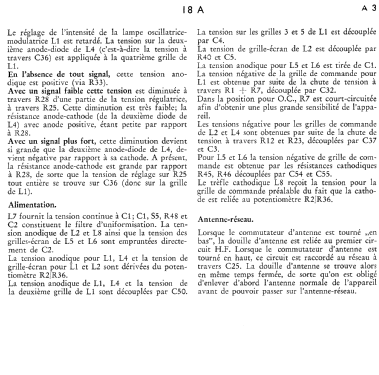

Literature/Schematics (1) -- Original-techn. papers. (Generic model 18A by Philips dated 1937)
