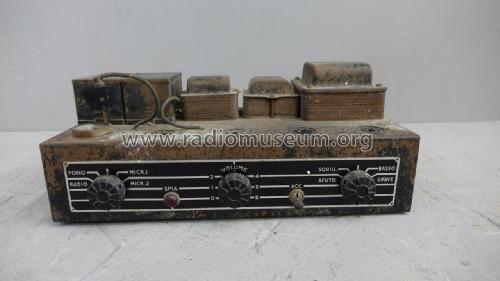

15A5; Condor Ing. Gallo; (ID = 2368867) Ampl/Mixer
Condor Ing. Gallo;: 15A5 [Ampl/Mixer] ID = 2368867 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 15A5, Condor (Ing. Gallo); Milano

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1943/1944 ? Category: Audio Amplifier or -mixer
Valves / Tubes 5: 6Q7G 6C5G 6V6G 6V6G 5V4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 15 W (undistorted)
from Radiomuseum.org Model: 15A5 - Condor Ing. Gallo; Milano
Material Metal case, TUBES VISIBLE
Shape Book-shelf unit.
Dimensions (WHD) 380 x 85 x 180 mm / 15 x 3.3 x 7.1 inch
Notes
Possibility to supply clamp + 10 vol (230)
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Literature/Schematics (1) Il Manuale del Radiomeccanico

Model page created by Giovanni Signorelli. See "Data change" for further contributors.
