Cyclone Six (II Serie)

Cyclone Six ; Condor Ing. Gallo; (ID = 2388416) Car Radio Cyclone Six ; Condor Ing. Gallo; (ID = 2388417) Car Radio
Cyclone Six ; Condor Ing. Gallo; (ID = 2388418) Car Radio Cyclone Six ; Condor Ing. Gallo; (ID = 2388419) Car Radio
Cyclone Six ; Condor Ing. Gallo; (ID = 2388420) Car Radio Cyclone Six ; Condor Ing. Gallo; (ID = 769238) Car Radio
Use red slider bar for more.

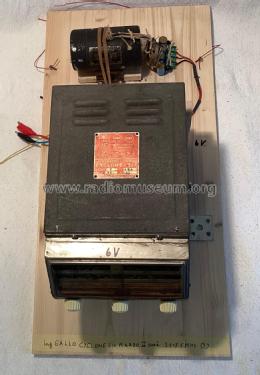

Cyclone Six ; Condor Ing. Gallo; (ID = 2388416) Car Radio
Condor Ing. Gallo;: Cyclone Six [Car Radio] ID = 2388416 1400x1844
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cyclone Six (II Serie), Condor (Ing. Gallo); Milano:
Autoradio Condor Cyclone Six II Serie

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1947 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: ECH4 6K7 6K7 6Q7 6N7 6N7
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Cyclone Six - Condor Ing. Gallo; Milano
Material Metal case
Notes

2 gamme di Onde Medie e 3 gamme di Onde Corte. Attacco per microfono. Completo di altoparlante in custodia metallica separata.

Possibilità di alimentazione a 6 o 12 V.

Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert (Notiziario di Radio Industria dicembre 1946)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Condor (Ing. Gallo); Milano
Here you find 101 models, 64 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
