• Year
  • 1967
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 83748

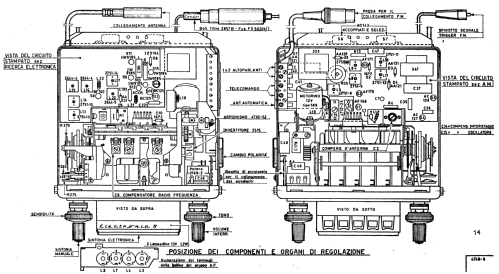

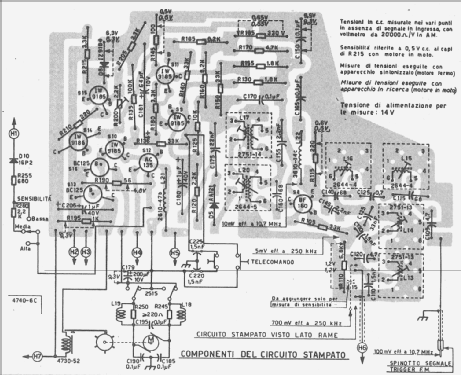

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios)
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

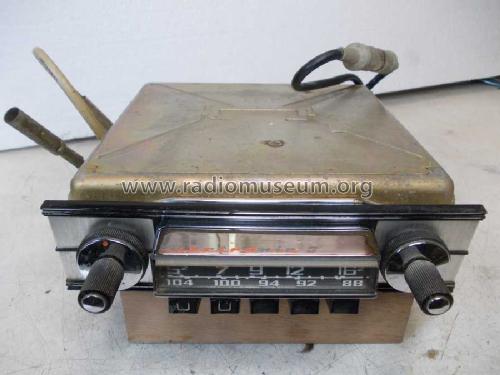

  • Model: GK4740 - Condor Ing. Gallo; Milano
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Sintonia elettronica

    Electronic tuning
  • Mentioned in
  • Quattroruote - Aprile 1967
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
