K-3 6 Volt batt.

K-3; Condor Ing. Gallo; (ID = 1408952) Car Radio
K-3; Condor Ing. Gallo; (ID = 1206115) Car Radio K-3; Condor Ing. Gallo; (ID = 1206116) Car Radio
K-3; Condor Ing. Gallo; (ID = 1206117) Car Radio K-3; Condor Ing. Gallo; (ID = 1206118) Car Radio
Use red slider bar for more.
K-3; Condor Ing. Gallo; (ID = 1206115) Car Radio
Condor Ing. Gallo;: K-3 [Car Radio] ID = 1206115 673x486
Select picture or schematic to display from thumbnails on the right and click for download.
For model K-3 6 Volt batt., Condor (Ing. Gallo); Milano:
Source: ebay.it #160776160680 seller: 2011portovecchio

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1962 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 3: ECH81 EBF89 ECC82
Semiconductors (the count is only for transistors) 4: OC26 OC26 SFT213 SFT213
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: K-3 [6 Volt batt.] - Condor Ing. Gallo; Milano
Material Metal case
Shape Chassis only or for «building in»
Notes

Modulo transverter 2532 per 6 V. Batt.

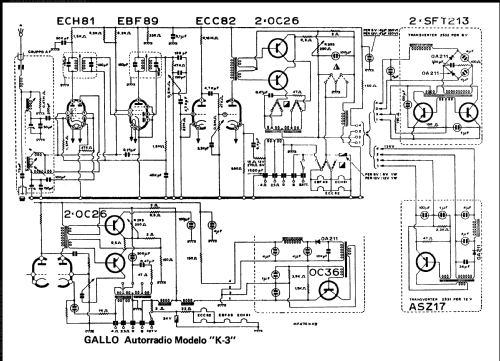

Literature/Schematics (4) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
