• Country
• Italy

• Manufacturer / Brand
• Condor (Ing. Gallo); Milano

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190037

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF117 AF117 AF117 AC125 AC125 AC128 AC128 OA79 OA79

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

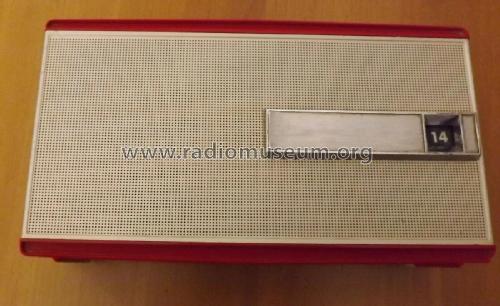

• Model: K8 - Condor Ing. Gallo; Milano

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 185 x 105 x 50 mm / 7.3 x 4.1 x 2 inch

• Net weight (2.2 lb = 1 kg)
• 0.790 kg / 1 lb 11.8 oz (1.74 lb)

• Price in first year of sale
• 24,000.00 ITL

• Mentioned in
• Catalogo ANIE (1970-71)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 141 models, 76 with images and 100 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
