Mehara Prima Serie

Mehara Prima Serie; Condor Ing. Gallo; (ID = 2591967) Radio
Use red slider bar for more.
Mehara Prima Serie; Condor Ing. Gallo; (ID = 2591967) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1945 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH3 EF9 EBF2
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Powered by external power supply or a main unit. / 6.3 & DC ? Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Mehara Prima Serie - Condor Ing. Gallo; Milano
Shape Chassis only or for «building in»
Notes

Quattro bande
Introvabile la parte bassa frequenza/alimentazione.
Ingresso per giradischi.

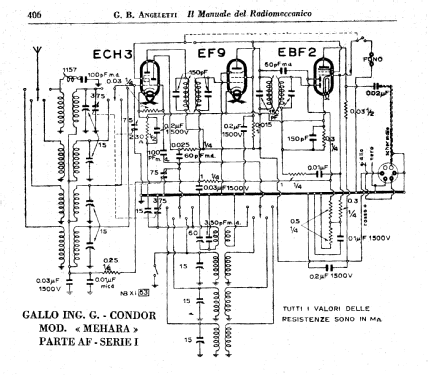

Mentioned in -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.



All listed radios etc. from Condor (Ing. Gallo); Milano
Here you find 108 models, 64 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
