• Country
• Italy

• Manufacturer / Brand
• Condor (Ing. Gallo); Milano

• Year
• 1970 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 158641

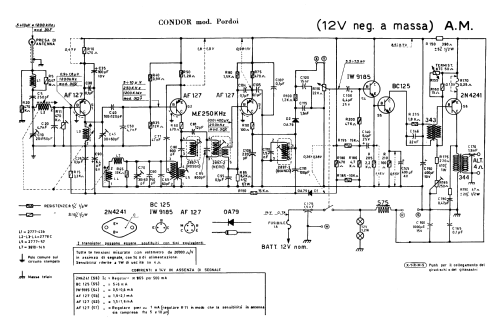

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF127 AF127 AF127 unknown_tr BC125 2N4241 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 250 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Pordoi - Condor Ing. Gallo; Milano

• Shape
• Chassis only or for «building in»

• Notes

• A questo apparecchio possono essere collegati sia il "Player" della Condor che il giradischi Philips AG 2101D.
  Sintonia ad induttori variabili.

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
