FM AM 3 Band Deluxe CR-19F (Japan 109)

FM AM 3 Band Deluxe CR-19F ; Coney Onkyo Co. Ltd. (ID = 2138128) Radio FM AM 3 Band Deluxe CR-19F ; Coney Onkyo Co. Ltd. (ID = 2138129) Radio

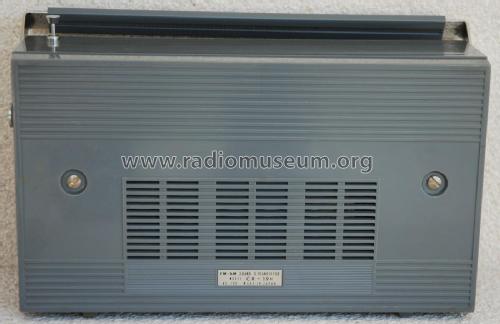

FM AM 3 Band Deluxe CR-19F ; Coney Onkyo Co. Ltd. (ID = 2138130) Radio FM AM 3 Band Deluxe CR-19F ; Coney Onkyo Co. Ltd. (ID = 2138131) Radio
Use red slider bar for more.
FM AM 3 Band Deluxe CR-19F ; Coney Onkyo Co. Ltd. (ID = 2138128) Radio
Coney Onkyo Co. Ltd.: FM AM 3 Band Deluxe CR-19F [Radio] ID = 2138128 1400x1027
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM AM 3 Band Deluxe CR-19F (Japan 109), Coney Onkyo Co. Ltd. (Conion); Kobe

Country:  Japan
Manufacturer / Brand:  Coney Onkyo Co. Ltd. (Conion); Kobe
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: FM AM 3 Band Deluxe CR-19F - Coney Onkyo Co. Ltd. Conion;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 152 x 75 mm / 10.4 x 6 x 3 inch
Notes

Made in Japan 109

Net weight (2.2 lb = 1 kg) 1.150 kg / 2 lb 8.5 oz (2.533 lb)

Model page created by José Manuel Silvestre. See "Data change" for further contributors.
