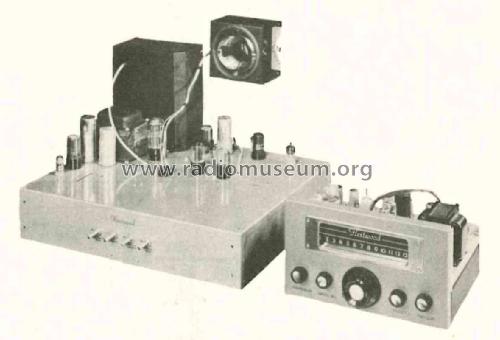

Fleetwood 800 Remote-Control TV Receiver

• Country
• United States of America (USA)

• Manufacturer / Brand
• Conrac Inc.; Baldwin Park (CA)

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 100592

• • Brand: Peyton

• Picture
• Schematics

Previous Next

Previous Next

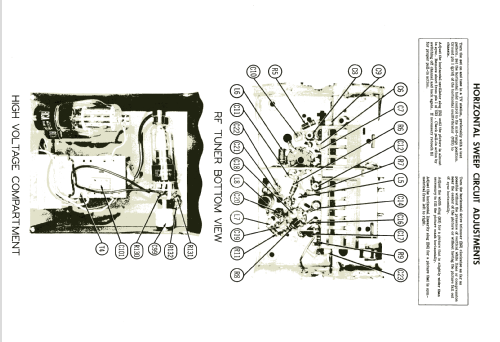

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 28

• Valves / Tubes
• 6BQ7 6J6 6CB6 6AU6 6AU6 6AV6 6AL5 6AN8 6AN8 6AU6 6AU6 6AL5 6AB4 12AT7 6AC7 12AU7 6AV6 6V6GT 6BY6 6SN7GTB 6W6GT 6AL5 6SN7GTB 6CD6G 6AU4GT 1B3GT 5U4GB 27EP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V= 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fleetwood 800 Remote-Control TV Receiver - Conrac Inc.; Baldwin Park CA

• Shape
• Chassis only or for «building in»

• Notes

• For 21, 24 or 27" picture tubes, 90º deflection.

  The FLEETWOOD model 800 is a 27" b/w TV with US standard VHF Tuner channels 2 thru 13,equipped with VHF-tuner 1153 and picture tube 27EP4.

• Price in first year of sale
• 300.00 $

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 311 Folder 5 Dated 3-56)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
