Green Multimeter VC200

Green Multimeter VC200; Conrad Electronic (ID = 1637169) Equipment Green Multimeter VC200; Conrad Electronic (ID = 1637170) Equipment
Green Multimeter VC200; Conrad Electronic (ID = 1637171) Equipment Green Multimeter VC200; Conrad Electronic (ID = 1637172) Equipment
Green Multimeter VC200; Conrad Electronic (ID = 1637173) Equipment
Use red slider bar for more.

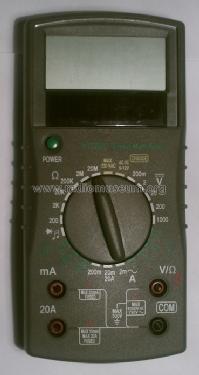

Green Multimeter VC200; Conrad Electronic (ID = 1637169) Equipment
Conrad Electronic: Green Multimeter VC200 [Equipment] ID = 1637169 369x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model Green Multimeter VC200, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 1996 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 7:
Wave bands - without
Details
Power type and voltage Solar- and/or muscle driven, also addl. power jack possible / 5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Green Multimeter VC200 - Conrad Electronic Voltcraft,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 80 x 175 x 30 mm / 3.1 x 6.9 x 1.2 inch
Notes

Green Multimeter VC200  mit 3,5 stelliger LCD-Anzeige,  1999.
Solarbetriebenes Multimeter mit  Solarzellen, eingebauter Gold-Cap Speicherkondensator 1,0F/5,5V, der auch aus dem 220V Netz oder an einer AC/DC  9-12V Spannungsquelle aufgeladen werden kann.

Meßbereiche:
DCV: 0,2, 2, 20, 200,1000V.
ACV: 2, 20, 200,750V-
DCA: 2, 20, 200 mA, 20A.
ACA: 2, 20, 200 mA, 20A.

Widerstand:
0,2, 2, 20, 200, 2000 kΩ, 20MΩ.
Diodentest mif Signalton.

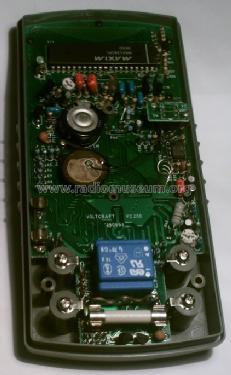

Halbleiter und integrierte Schaltungen:

MAX138CPL, TS27L2CN, 78L06

Lieferbar auch als Green Multimeter VC300 mit Automatischer Bereichswahl.

Net weight (2.2 lb = 1 kg) 0.240 kg / 0 lb 8.5 oz (0.529 lb)
Price in first year of sale 89.95 DM
Mentioned in -- Original prospect or advert (Conrad-Katalog 2002)

Model page created by Reinhard Keins. See "Data change" for further contributors.
