Mini-Verstärker 1 Watt Best.-Nr.: 116831

Mini-Verstärker 1 Watt Best.-Nr.: 116831; Conrad Electronic (ID = 1707941) Kit
Mini-Verstärker 1 Watt Best.-Nr.: 116831; Conrad Electronic (ID = 1707915) Kit Mini-Verstärker 1 Watt Best.-Nr.: 116831; Conrad Electronic (ID = 1707916) Kit
Mini-Verstärker 1 Watt Best.-Nr.: 116831; Conrad Electronic (ID = 1707917) Kit
Use red slider bar for more.
Mini-Verstärker 1 Watt Best.-Nr.: 116831; Conrad Electronic (ID = 1707915) Kit

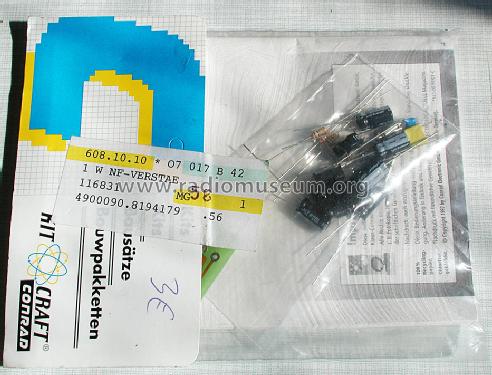

Conrad Electronic: Mini-Verstärker 1 Watt Best.-Nr.: 116831 [Kit] ID = 1707915 720x511
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini-Verstärker 1 Watt Best.-Nr.: 116831, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 1997 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) TBA820M
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 3,5-16 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Mini-Verstärker 1 Watt Best.-Nr.: 116831 - Conrad Electronic Voltcraft,
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 40 x 45 x 0 mm / 1.6 x 1.8 x 0 inch
Notes

Frequenzbereich ca. 100...18.000 Hz; Lautsprecherausgang 4...8 Ω; Ruhestrom 8 mA, bei Vollaussteuerung 250 mA.

Mentioned in -- Original-techn. papers. (Bauanleitung)
