MW-Retro-Radio Art.-Nr.: 192205 2011

MW-Retro-Radio Art.-Nr.: 192205; Conrad Electronic (ID = 2575872) Kit
MW-Retro-Radio Art.-Nr.: 192205; Conrad Electronic (ID = 2575865) Kit MW-Retro-Radio Art.-Nr.: 192205; Conrad Electronic (ID = 2575866) Kit

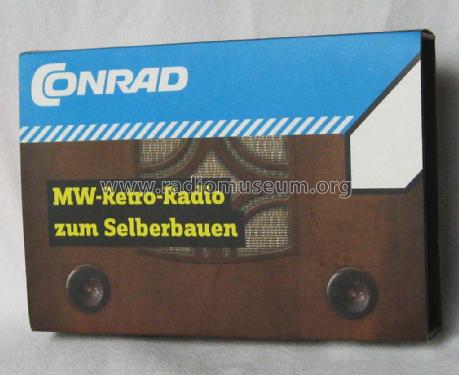

MW-Retro-Radio Art.-Nr.: 192205; Conrad Electronic (ID = 1873458) Kit MW-Retro-Radio Art.-Nr.: 192205; Conrad Electronic (ID = 2575868) Kit
Use red slider bar for more.
MW-Retro-Radio Art.-Nr.: 192205; Conrad Electronic (ID = 2575865) Kit
Conrad Electronic: MW-Retro-Radio Art.-Nr.: 192205 [Kit] ID = 2575865 1024x793
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW-Retro-Radio Art.-Nr.: 192205 2011, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 2011 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 1: BC547 TA7642
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details Retro-look - not smaller orig.
Power type and voltage Dry Batteries / 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: MW-Retro-Radio Art.-Nr.: 192205 [2011] - Conrad Electronic Voltcraft,
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 110 x 30 mm / 6.3 x 4.3 x 1.2 inch
Price in first year of sale 7.99 Euro

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
