Rechnender Frequenzzähler FZ-1310

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108519) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108520) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108521) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108522) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108523) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108524) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108525) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108526) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108527) Equipment

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2108528) Equipment
Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2109742) Equipment Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2109741) Equipment
Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2109745) Equipment Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2109743) Equipment
Use red slider bar for more.

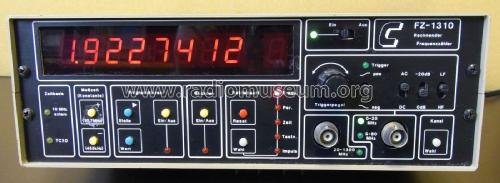

Rechnender Frequenzzähler FZ-1310; Conrad Electronic (ID = 2109742) Equipment
Conrad Electronic: Rechnender Frequenzzähler FZ-1310 [Equipment] ID = 2109742 1400x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rechnender Frequenzzähler FZ-1310, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 1988 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Rechnender Frequenzzähler FZ-1310 - Conrad Electronic Voltcraft,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 76 x 175 mm / 9.8 x 3 x 6.9 inch
Notes

Conrad Rechnender Frequenzzähler FZ-1310, Meßbereich 0 bis 1300MHz, mit 2 Eingängen:

  • 0...80 MHz, Eingangsimpedanz 1 MΩ || 40 pF, schaltbares LF-Filter
  • 20...13000 MHz, Eingangsimpedanz 50 Ω

5 Betriebsarten: Frequenz, Periode, Zeit, Tastverhältnis, Impulszahl.

Besonderheit: Der Zähler kann eine frei einstellbare Frequenz addieren oder subtrahieren, so dass bei Anschluss an den Oszillator eines Superhet-Empfängers die tatsächliche Empfangsfrequenz anzeigt wird.

Option: 10 MHz TCXO Zeitbasis, Fehler < +/- 1ppm

Hergestellt von Auerswald GmbH & Co. KG, Cremlingen

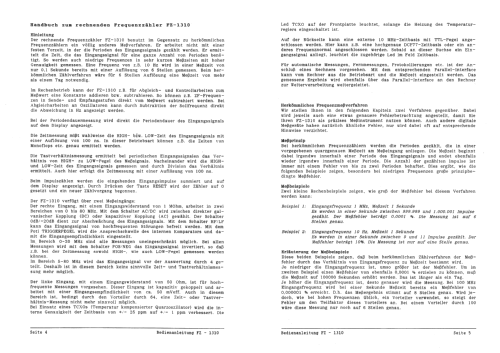

Source of data -- Original-techn. papers.

Model page created by Dieter Barkawitz. See "Data change" for further contributors.
