Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714

Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714; Conrad Electronic (ID = 2586783) Ampl/Mixer Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714; Conrad Electronic (ID = 2586782) Ampl/Mixer
Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714; Conrad Electronic (ID = 2586784) Ampl/Mixer Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714; Conrad Electronic (ID = 2586785) Ampl/Mixer
Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714; Conrad Electronic (ID = 2586786) Ampl/Mixer
Use red slider bar for more.
Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714; Conrad Electronic (ID = 2586783) Ampl/Mixer

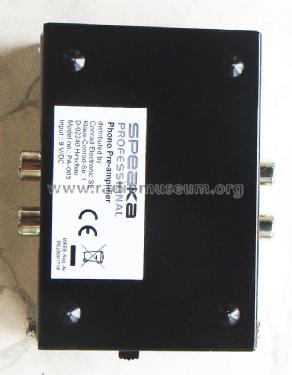

Conrad Electronic: Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714 [Ampl/Mixer] ID = 2586783 1024x749
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 2010 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Batteries / addl. power jack / 6LR61: 1 x 9 / 9 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Speaka RIAA Stereo Vorverstärker PA-005 Nr. 1230714 - Conrad Electronic Voltcraft,
Material Metal case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 85 x 30 x 70 mm / 3.3 x 1.2 x 2.8 inch
Notes

Stereo-Phono-Vorverstärker mit RIAA-Entzerrung, Ein- und Ausgänge über Cinch-Buchsen, Spannungsversorgung über interne Batterie oder 3,5 mm DC-Klinkenbuchse.

Daten:
Stromaufnahme: 1 mA,
Eingangsimpedanz: 50 kΩ,
Ausgangsimpedanz: 50 kΩ,
Verstärkung: 34 dB,
Frequenzbereich: 30 - 20000 Hz.

Vertrieb in Deuschland z.B. auch über Völkner, Amazon (Stand: 2020)

Net weight (2.2 lb = 1 kg) 0.115 kg / 0 lb 4.1 oz (0.253 lb)
Price in first year of sale 15.60 €

Model page created by Holger Struthoff. See "Data change" for further contributors.
